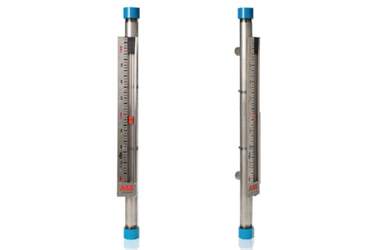

LMG100 Econolev Magnetic Level Gauge
Source: ABB Measurement & Analytics
The ECONOLEV LMG100 is a magnetic liquid level gauge specifically designed for the OEM / commercial storage tank, and light industrial market. It is engineered to meet most liquid measurement applications where a simple, non custom armored level gauge is required. The ECONOLEV provides an economical solution to traditional exposed glass level gauges.
Features
- Standardized design configuration for simple selection
- Low cost
- 2 in. (50.8 mm) schedule 40, 316SS pipe chamber
- Gauge rated to 13.7 bar (275 psi) (150# flange rating) and 93.3 ˚C (200 ˚F)
- Threaded top and bottom gauge and cap design allows easy maintenance
- Clear sealed Lexan tube for shuttle indicator
- Welded, side connected, 1in. NPT-f process connections
- 1/2 in. NPT-f vent and drain connection with plug
- Stainless steel scale indication
Options
- 316SS Threaded end caps (Standard is Carbon Steel)
- Magnetically actuated level switches
- Magnetostrictive level transmitter
Applications
- Diesel Storage tanks
- OEM tanks
- Water Treatment tanks
- Agricutural chemicals
- Most liquid tanks
