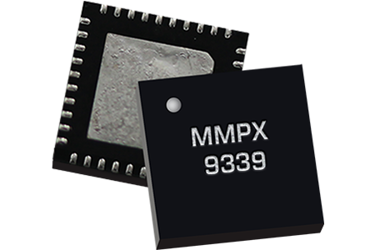

Passive MMIC DC-16 GHz Quadplexer: MMPX-00001PSM
The MMPX-00001PSM is a MMIC surface mount quadplexer capable of multiplexing DC-4 GHz / 6-8 GHz / 10-12 GHz / 14-16 GHz signals.
Passive GaAs MMIC technology allows production of smaller filter constructions that replace larger form factor circuit board constructions. Tight fabrication tolerances allow for less unit-to-unit variation than traditional filter technologies. The MMPX-00001PSM is available as a 6x6mm QFN. Low unit to unit variation allows for accurate simulations using the provided SnP files taken from measured production units.
Features
- Excellent Return Loss
- 9 GHz crossover frequency
- High Band-Band Isolation
Applications
- Satellite Communications
- Reflectionless Filter Applications
- Electronic Warfare
